Flomec High Temp
Sanitary Brewery & Beer Flow Meter
FLOMEC® G2 Series Precision Turbine Meters
As an engineer, you’re challenged to solve problems that often seem impossible to others. FLOMEC® engineers are challenged everyday to do the same. At Great Plains Industries, Inc.®, every product is engineered and built to meet our ‘triple standard test’ of delivering better performance and higher quality at a lower cost.Whether you need to measure for water, gasoline, chemicals, dairy, engine oils, transmission fluids, and various industrial liquids, FLOMEC products are engineered to perform better.
A Consistent Batch. Every Time.
FLOMEC® G2 Series Sanitary High-Temp Battery-Powered Flow Meter with Local Display
- Measure hot water flow up to 185° F ( 85° C )
- Affordable, repeatable measurements help maintain a consistent recipe, batch after batch
- Easily move from one process point to the next: Measure volumes for strike water, sparge water, wort transfer, and final batch
- Improve process efficiencies by accurately measuring volumes

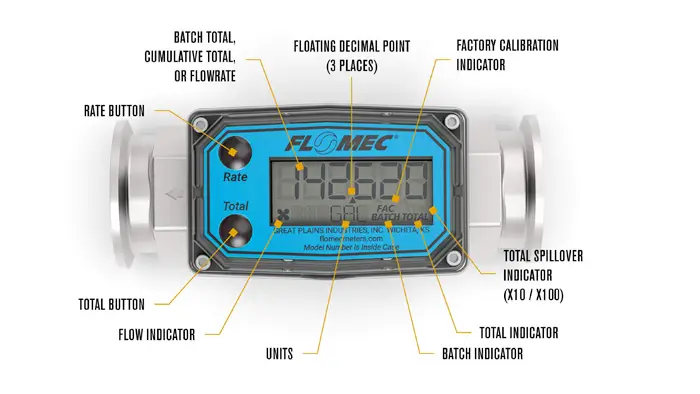

- Highly visible 6-digit LCD local display is battery-powered; 2-year battery life
- 11 pre-programed engineering units including gallon, litre, quart, ounces, and one user-configurable custom unit
- Keep an eye on your flow – quickly toggle between Total and Flow Rate with one touch of a button
Flowmeters
Engineered To Be Better

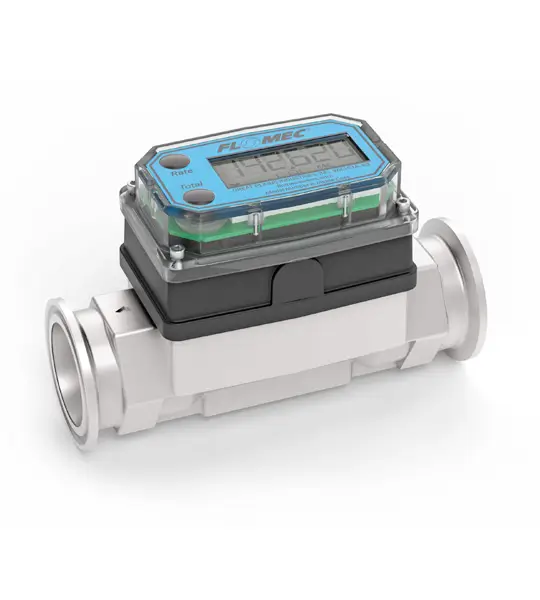

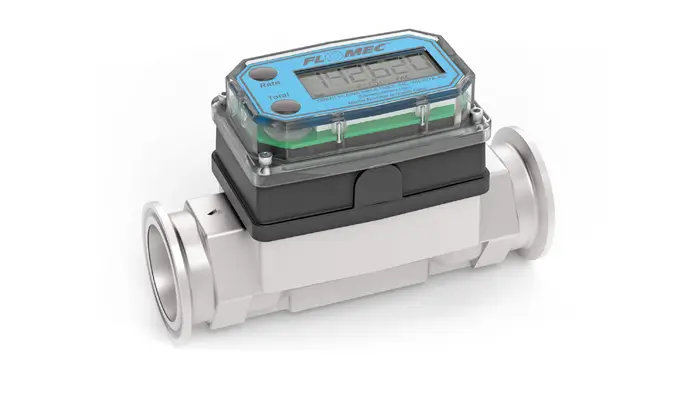

FLOMEC® G2 Series Sanitary High-Temp Flow Meter with Local Display
1-inch with 1-1/2 inch Tri-Clamp, High-Temp, Litres
SKU: G2S10TH9LMX
$1249.00 CAD
Technology: Turbine
Pipe Size: 1-inch
Inlet: 1-1/2 in. Tri-Clover
Outlet: 1-1/2 in. Tri-Clover
Fitting: Tri-Clamp Sanitary
Flow Range: 5 – 50 GPM (19-190 L/min)
Housing: 316 Stainless Steel
Calibrated For: Litre
Max Working Temp: 0°F to 185° F (-18°C to 85°C)
Totals: Batch & Cumulative Totals, Rate of Flow, Non-volatile totals, 6-digit LCD
Best Uses: Strike water|Hot water flow|Brewing processes|Food and beverage processing

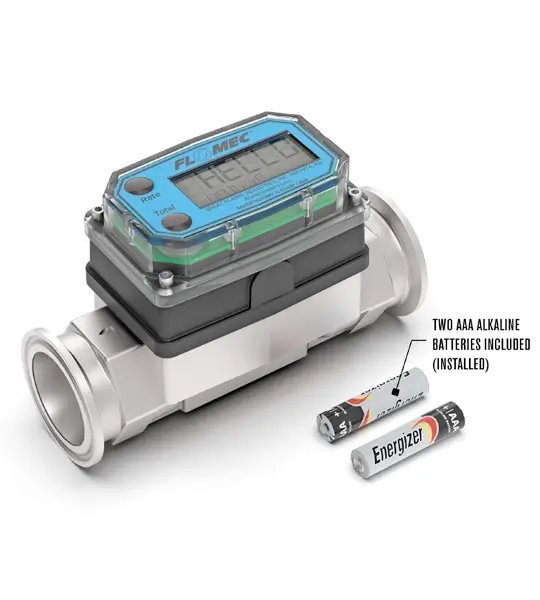

Included in Box:Turbine flowmeter, Local Digital Display, High-Temperature Riser, (2) alkaline AAA batteries & Owners Manuals
Documentation: See Below
Flowmeters
Engineered To Be Better
FLOMEC® TP Series Flowmeters measure flows of low viscosity liquids from 0.5 – 1200 gallons/min (1.8 – 4500 litres/min) in a range of sizes from ½” to 4” (15 – 100 mm). Installation orientation is horizontally or vertically, and they are available with hazardous area ATEX & IECEx, and Intrinsically Safe (IS) certifications
- 1-inch Tri-Clamp, High-Temp, Gallons (special order)
- 1-inch Tri-Clamp, High-Temp, Litres (order above)
- 1-1/2-inch Tri-Clamp, High-Temp, Gallons (special order)
- 1-1/2-inch Tri-Clamp, High-Temp, Litres (order above)
- 2-inch Tri-Clamp, High-Temp, Gallons (special order)
- 2-inch Tri-Clamp, High-Temp, Litres (special order)
- 3/4-inch Tri-Clamp, High-Temp, Gallons (special order)
- 3/4-inch Tri-Clamp, High-Temp, Litres (special order)
- 1/2-inch Tri-Clamp, High-Temp, Gallons (special order)
- 1/2-inch Tri-Clamp, High-Temp, Litres (special order)
Download Product Documents Below
FLOMEC® G2 Brew Meter Overview
Brewery Meter Application Brief and Case Study
FLOMEC® G2 Data Sheet – Full Specifications
FLOMEC® G2 Owner’s Manual
FLOMEC® Q9 Non-Agency Data Sheet
FLOMEC® Q9 Non-Agency Owner’s Manual
